When operating a 20-ton crane, safety is paramount. Ensuring compliance with relevant safety certifications can mitigate risks and ensure efficient and safe operations. Below are the key certifications and standards commonly associated with 20-ton cranes:

1. OSHA Certification: The Occupational Safety and Health Administration (OSHA) sets strict guidelines for crane safety. Crane operators must be certified through an accredited program, as outlined in OSHA standards 29 CFR 1926.1427.

2. ANSI/ASME B30 Standards: The American National Standards Institute (ANSI) and the American Society of Mechanical Engineers (ASME) have developed standards such as ASME B30.5 for Mobile and Locomotive Cranes and ASME B30.2 for Overhead and Gantry Cranes. Adhering to these standards is crucial for safe crane operations.

3. CMAA Specifications: The Crane Manufacturers Association of America (CMAA) provides specifications and guidelines for the design, construction, installation, inspection, and maintenance of crane equipment, known as CMAA Specification No. 70 for overhead and gantry cranes.

4. ISO 9927-1: The International Organization for Standardization (ISO) provides guidelines for the inspection, maintenance, and operation of cranes, with ISO 9927-1 specifically addressing general crane maintenance practices.

5. NCCCO Certification: The National Commission for the Certification of Crane Operators (NCCCO) offers certification programs for crane operators, ensuring they possess the necessary skills and knowledge to safely operate cranes.

6. Local and State Regulations: Various states and municipalities might have specific regulations governing crane operations. Familiarity and compliance with local statutes are essential.

7. Manufacturer’s Guidelines: Adhering to the crane manufacturer’s operating manual and maintenance guidelines helps ensure that the crane operates safely and efficiently.

Regular safety training, routine inspections, proper maintenance, and strict adherence to the above certifications and standards can significantly enhance the safety and reliability of operating a 20-ton crane.

List Reference Technical Parameters of “20 ton crane”

A 20-ton crane is a versatile piece of heavy machinery used for lifting and moving weights up to 20 tons (equivalent to 40,000 pounds or approximately 18,144 kilograms). There are various types of cranes, such as mobile cranes, tower cranes, and overhead cranes, each with its own specifications. Below are common technical parameters to consider:

1. Lifting Capacity: Rated for a maximum load of 20 tons.
2. Span: The horizontal distance between the runway rails or the width of the crane system.
3. Lift Height: The maximum vertical distance the hook can travel from the load to the highest point of the lift.
4. Hook Approach: The minimum distance from the hook to the crane runway rails.
5. Speed:
– Hoist Speed: The rate at which the lifting mechanism can raise or lower loads.
– Trolley Travel Speed: The speed of the trolley moving along the bridge.
– Bridge Travel Speed: The speed at which the entire crane moves along the runway.
6. Control System: Types include pendant control, radio remote control, or automation systems.
7. Power Supply: Voltage, frequency, and phase type required for operation, commonly 3-phase AC.
8. Duty Class or Service Class: Classification based on the frequency and intensity of crane usage (e.g., A1 to A8 for European standards).
9. Outreach: The horizontal distance from the centerline of the crane’s rotation to the hook.
10. Motor Requirements: Type, power rating, and efficiency.
11. Rigging Accessories: Types of slings, hooks, and other lifting devices used.
12. Safety Systems: Load moment indicators, anti-collision devices, and emergency stop mechanisms.
13. Mobility: For mobile cranes, includes wheelbase dimensions and type of terrain adaptations.

Each crane may have additional parameters specific to its manufacturer and intended usage context. Always refer to the crane’s manual and technical documentation for precise information.
20 ton crane

List Product features of “20 ton crane”

A 20-ton crane boasts a variety of robust features, designed to efficiently handle heavy lifting tasks in diverse industrial applications. Below is a succinct list of key features:

1. Lifting Capacity: With a maximum lifting capacity of 20 tons (40,000 pounds), it caters to heavy-duty lifting requirements.

2. Boom Length: Often features an extendable boom ranging from 20 to 100 feet, providing flexibility in reach and height.

3. Mobility: Available in mobile configurations (truck-mounted or wheeled) and fixed overhead versions, enhancing versatility in different environments.

4. Rotation and Articulation: Incorporates a full 360-degree rotation and sometimes articulating jib extensions for precise positioning.

5. Advanced Control Systems: Equipped with state-of-the-art control systems for smooth operation, including remote controls, automated functions, and safety mechanisms.

6. Stabilizers and Outriggers: Features robust stabilizers and outriggers to ensure stability during lifting operations, preventing tipping and enhancing safety.

7. Load Sensing and Indicators: Includes load-sensing technology and overload warning systems to prevent overloading and ensure safe operation.

8. Construction and Durability: Built with high-strength steel and rugged materials to withstand rigorous use and harsh environmental conditions.

9. Power Source: Operates on various power sources such as diesel, electric, or hybrid engines, catering to different operational needs.

10. Safety Features: Incorporates multiple safety features like emergency stop functions, anti-collision systems, and failsafe brakes ensuring operator and site safety.

11. Ease of Maintenance: Designed with accessible components and diagnostic tools that simplify routine maintenance and troubleshooting.

12. Customization Options: Offers customizable configurations to meet specific operational needs, including different boom types, lifting attachments, and control interface options.

These features collectively make the 20-ton crane a formidable tool for heavy lifting in construction, manufacturing, logistics, and other industrial sectors.
20 ton crane

List Various Types of “20 ton crane”

Sure! Here are various types of 20-ton cranes, each tailored to specific applications and environments:

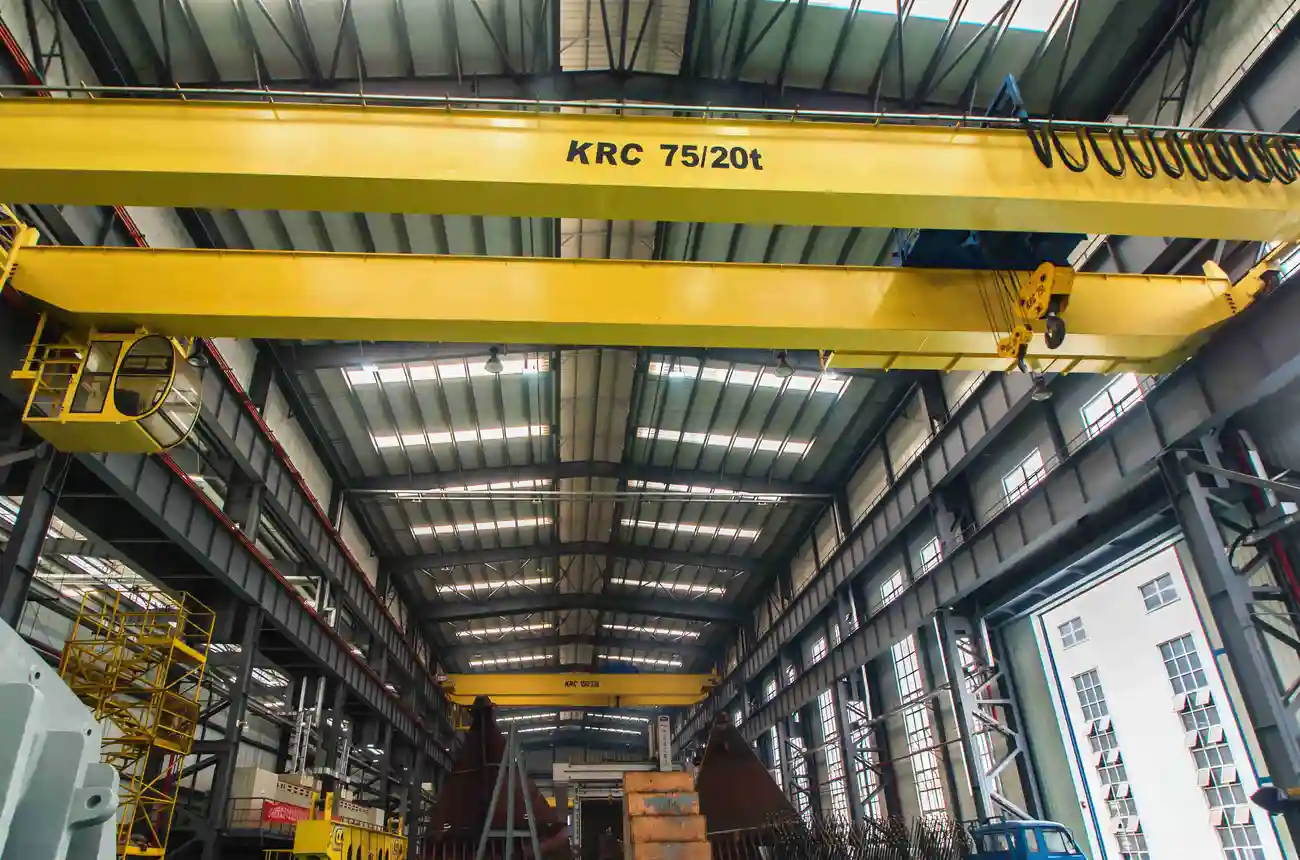

1. Overhead Crane (Bridge Crane)
– Single Girder Overhead Crane: Utilizes a single girder with a trolley and hoist, ideal for lighter, more compact spaces.
– Double Girder Overhead Crane: Features two girders, offering greater lifting height and load stability, suitable for heavy-duty applications.

2. Gantry Crane
– Full Gantry Crane: Has a full portal frame with legs that move on rails, commonly used in outdoor applications like shipping yards.
– Semi-Gantry Crane: One side rides on a runway system, and the other side has legs, useful for indoor applications with varied floor levels.

3. Jib Crane
– Free-Standing Jib Crane: Installed on a concrete foundation, providing 360-degree rotation.
– Wall-Mounted Jib Crane: Mounted to a building’s wall or columns, offers up to 200-degree rotation, saving floor space.

4. Telescopic Crane
– Features a boom with multiple tubes fitted one inside the other, allowing for variable boom lengths. Ideal for construction and dockside applications where flexibility is key.

5. Crawler Crane
– Mounted on an undercarriage with tracks, offering stability and mobility on uneven ground, commonly used in construction and heavy industry sectors.

6. Truck-Mounted Crane
– Mounted on a truck, providing flexibility and ease of transport between job sites. Useful for applications requiring mobility.

7. Tower Crane
– Often used in the construction of tall buildings, these cranes are fixed to the ground or attached to the building and can lift heavy loads to significant heights.

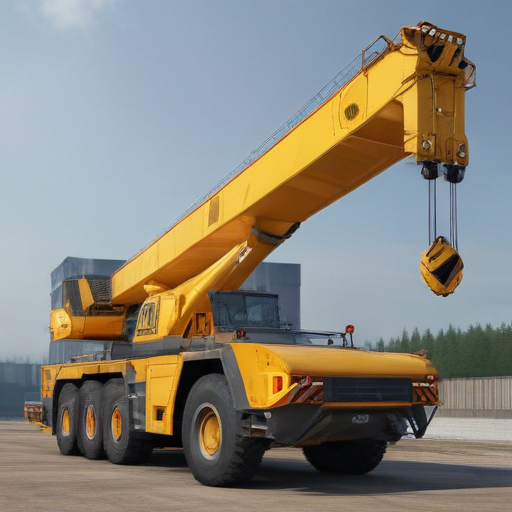

8. Mobile Crane
– Includes rough-terrain and all-terrain cranes that offer versatile movement over different ground conditions, ideal for both urban and rugged environments.

Each type of 20-ton crane has its own set of advantages, choosing the right one depends on factors like the nature of the job, site conditions, and specific lifting requirements.
20 ton crane

List Application of “20 ton crane”

A 20-ton crane is a versatile piece of equipment used across various industries for lifting and moving heavy loads. The primary applications of a 20-ton crane include:

1. Construction: Used for lifting steel beams, concrete blocks, and other heavy construction materials on building sites. It facilitates the erection of structures by moving materials to different heights and locations.

2. Manufacturing: Essential for transporting heavy machinery and components on the factory floor. It helps in assembling large parts and maintaining production efficiency by swiftly moving items from one process phase to another.

3. Warehousing and Logistics: Used in distribution centers to handle heavy pallets, containers, and other bulky items. Enhances the efficiency of loading and unloading processes, reducing manual labor and time.

4. Shipping and Ports: Critical for loading and unloading cargo ships. It handles large containers and other heavy goods, ensuring smooth and efficient port operations.

5. Mining: Assists in the lifting and transportation of mining equipment, ores, and waste materials. Essential for assembling and maintaining mining plant structures.

6. Energy Sector: Utilized in wind farms for lifting large wind turbine components and in the maintenance of power plants. It is also used in laying pipelines in the oil and gas industry.

7. Railway Maintenance: Facilitates the lifting and placement of track sections and heavy components during construction and repair works.

8. Automotive Industry: Helps in the assembly and handling of heavy vehicle parts. Essential for engine installations and moving large dies and molds.

9. Heavy Equipment Maintenance: Assists in the repair and maintenance of large machinery and industrial equipment by lifting and positioning heavy parts.

10. Urban Infrastructure Projects: Used in the construction of bridges, highways, and other infrastructural facilities requiring the lifting of heavy materials and equipment.

In summary, 20-ton cranes are indispensable in sectors requiring the manipulation of heavy loads, contributing to efficiency, safety, and productivity.
20 ton crane

List Buyer Types of “20 ton crane”

In the industrial and commercial sectors, the demand for cranes is diverse, spanning multiple industries requiring heavy lifting solutions. Here are key buyer types for a 20-ton crane, outlining their primary uses and needs:

1. Construction Companies:
– Primary Use: For lifting and moving heavy construction materials such as steel beams, concrete panels, and other structural elements.
– Need: Reliable, safe, and efficient lifting equipment to enhance productivity on construction sites.

2. Manufacturing Plants:
– Primary Use: Handling heavy machinery, components, and finished products within production areas.
– Need: Cranes capable of maneuvering in confined spaces and handling repetitive, heavy loads.

3. Shipyards:
– Primary Use: Unloading parts, assembling large sections, and moving heavy ship components.
– Need: Durable, weather-resistant cranes with a capacity to operate in harsh maritime environments.

4. Steel Mills:
– Primary Use: Moving and loading heavy raw materials and finished steel products.
– Need: Robust cranes capable of withstanding high temperatures and heavy-duty cycles.

5. Mining Operations:
– Primary Use: Handling mining equipment, moving extracted minerals, and supporting infrastructure construction.
– Need: High-capacity and rugged cranes that perform in challenging, often remote locations.

6. Power Plants:
– Primary Use: Managing components such as turbines, generators, and other heavy equipment.
– Need: Precision handling and installation capabilities to ensure plant efficiency and reduce downtime.

7. Logistics and Warehousing:
– Primary Use: Loading and unloading heavy cargo from trucks, trains, and storage.
– Need: Flexible and efficient cranes to streamline handling processes and improve logistics flow.

8. Civil Infrastructure Projects:
– Primary Use: Constructing bridges, tunnels, and other large-scale public works.
– Need: Reliable lifting equipment to handle the scale and complexity of infrastructure projects.

Each of these buyer types seeks specific functionalities in a 20-ton crane tailored to their operational requirements, emphasizing reliability, precision, and efficiency for diverse heavy lifting tasks.
20 ton crane

List “20 ton crane” Project Types for Different Industries

Certainly! A 20-ton crane is a versatile piece of lifting equipment used across various industries for handling heavy loads. Here are project types where a 20-ton crane finds application:

1. Construction
– Building high-rise structures
– Bridge construction
– Moving large construction materials like steel beams and concrete slabs

2. Manufacturing
– Assembly of heavy machinery
– Movement of large components within manufacturing plants
– Maintenance and setup of production lines

3. Energy and Utilities
– Installing and maintaining wind turbines
– Handling heavy electrical transformers and equipment
– Constructing power plant facilities

4. Oil and Gas
– Rigging and moving large drilling equipment
– Offshore platform construction and maintenance
– Transporting pipeline sections

5. Transportation and Logistics
– Loading and unloading large shipping containers
– Railcar construction and maintenance
– Aircraft assembly and component movement

6. Mining
– Moving ore and other heavy materials
– Erection and maintenance of mining machinery
– Tunnel and shaft construction projects

7. Aerospace
– Assembly of aircraft parts
– Installation of large aerospace components
– Transport and positioning of spacecraft modules

8. Marine
– Shipbuilding and repair
– Dockside loading and unloading of heavy cargo
– Installation of marine infrastructure like docks and piers

9. Automotive
– Assembly line equipment installation
– Moving large automotive parts and machinery
– Maintenance of heavy production equipment

10. Agriculture
– Handling bulk materials like grain or feed silos
– Moving heavy farm equipment
– Construction of large agricultural facilities

These industries utilize 20-ton cranes to enhance efficiency, improve safety, and manage heavy lifting tasks effectively. Each application maximizes the crane’s ability to handle substantial weights, ensuring operational productivity and project success.
20 ton crane

20 ton crane Accessories Upgrades and Custom Manufacturing Options

When upgrading or custom manufacturing accessories for a 20-ton crane, several options can enhance performance, safety, and functionality. These upgrades can be tailored to specific operational needs and environments:

1. Load Monitoring Systems: Advanced load monitoring systems provide real-time data on weight and load distribution, improving safety and operational efficiency.

2. Remote Controls: Wireless remote control systems offer better precision and flexibility, allowing operators to control the crane from a safe distance.

3. Anti-Collision Systems: These systems prevent accidents by detecting and alerting operators about potential collisions with objects or other cranes in the vicinity.

4. Variable Frequency Drives (VFD): VFDs allow for smoother acceleration and deceleration, reducing mechanical stress and enhancing the crane’s lifespan.

5. Automated Positioning: Implementing automated systems for precise load positioning saves time and increases accuracy in repetitive lifting tasks.

6. Customized Hooks and Grabs: Depending on the load types, specialized hooks, grabs, or magnets can be custom-manufactured to handle specific materials more effectively.

7. Extended Booms and Jibs: Custom-length booms and jibs can increase the crane’s reach, making it suitable for more extensive or complex projects.

8. Enhanced Safety Features: Options such as overload protection systems, emergency stop functions, and fail-safe braking systems significantly boost safety levels.

9. Weather Protection: Upgrades like heated cabs, waterproof electrical systems, and rust-resistant coatings ensure optimal performance in harsh weather conditions.

10. Noise Reduction Kits: Implementing noise reduction measures can create a more comfortable working environment, especially in urban or residential areas.

11. Camera Systems: High-definition camera systems provide operators with better visibility of the load and surroundings, enhancing precision and safety.

Each of these accessories can be tailored to fit the specific needs and constraints of your operation, ensuring that the 20-ton crane operates at peak efficiency and safety. Custom manufacturing options make sure that the crane is adaptable to unique project requirements, offering added value and long-term benefits.

List Quality Control and The Manufacturing Process of “20 ton crane”

Quality Control for a 20-Ton Crane

1. Material Inspection: Ensure raw materials like steel meet specified standards.
2. Welding Quality: Perform ultrasonic testing to detect welding flaws.
3. Dimension Verification: Measure components to ensure they meet design specifications.
4. Load Testing: Test the crane’s ability to handle loads up to and slightly above its maximum capacity.
5. Electrical System Check: Inspect and test all electrical components and wiring.
6. Non-Destructive Testing (NDT): Utilize methods like magnetic particle inspection for critical parts.
7. Paint & Coating Inspection: Verify the thickness and adherence of protective coatings.
8. Functional Testing: Operate the crane under controlled conditions to ensure all functions perform correctly.
9. Safety Features Verification: Check that all safety mechanisms, emergency stops, and limit switches are functional.
10. Documentation: Maintain records of all QC checks for traceability and audit purposes.

Manufacturing Process for a 20-Ton Crane

1. Design and Engineering: Develop detailed CAD designs and simulations for structural, mechanical, and electrical systems.
2. Procurement: Source high-quality raw materials and components such as steel beams, motors, and control units.
3. Fabrication: Cut, shape, and machine steel and other materials to precise dimensions using CNC machines.
4. Welding and Assembly: Weld major components and assemble smaller parts, ensuring alignment and integrity.
5. Electrical Assembly: Install electrical systems, including motors, control panels, and wiring.
6. Surface Treatment: Apply rust-resistant primers and paints to protect against corrosion.
7. Pre-Assembly Testing: Perform preliminary checks on individual parts and assemblies.
8. Final Assembly: Integrate all components into the final crane structure.
9. Load Testing: Test the crane under various load conditions to verify structural and mechanical integrity.
10. Inspection and Quality Control: Conduct exhaustive QC checks as outlined above.
11. Documentation and Certification: Complete all necessary documentation for compliance and certification.
12. Shipping and Installation: Prepare the crane for shipping and oversee its installation at the client’s site.

By adhering to stringent quality control measures and a well-defined manufacturing process, the production of a 20-ton crane can meet high standards of safety, reliability, and performance.
20 ton crane

How to use “20 ton crane”

Using a 20-ton crane involves several critical steps to ensure safety and efficiency. Here’s a concise guide:

1. Pre-Operation Checks:

– Inspection: Examine the crane for any visible damages or wear. Verify cables, hooks, and safety latches are intact.
– Load Capacity: Ensure the load does not exceed 20 tons.
– Environment: Check the area for obstacles and ground stability.

2. Setup:

– Stabilization: Extend and lock the outriggers to stabilize the crane.
– Positioning: Align the crane directly above the load to avoid swinging.

3. Lifting Procedures:

– Attachment: Secure the load with appropriate slings or lifting devices.
– Hoisting: Lift the load slowly, keeping an eye on stability and balance.
– Communication: Use hand signals or radios for clear communication with the team.

4. Transportation:

– Movement: Move the crane slowly and steadily. Avoid sudden stops or shifts.
– Clear Path: Ensure the path is clear of obstacles and personnel.

5. Lowering and Placement:

– Positioning: Lower the load gently to the designated spot.
– Safety: Ensure the area is clear and personnel are at a safe distance.
– Unhooking: Detach the sling carefully, without sudden movements.

6. Shutdown:

– Disengagement: Lower the crane’s hook to a secure position.
– Inspection: Check the crane for any potential issues post-operation.
– Storage: Retract outriggers and secure the crane.

Safety Tips:

– Training: Only trained operators should use the crane.
– PPE: Wear personal protective equipment (helmets, gloves, etc.)
– Emergency Procedures: Be familiar with emergency shutdown and rescue protocols.

By following these guidelines, you can safely and efficiently operate a 20-ton crane, ensuring both the safety of the crew and the integrity of the equipment.
20 ton crane

“20 ton crane” Comparative Analysis

A “20-ton crane” is a crucial piece of lifting equipment used in various industries such as construction, manufacturing, and logistics. Here’s a comparative analysis based on several key factors:

Types of 20-Ton Cranes

1. Mobile Cranes:
– Versatility: Can move around the job site easily.
– Setup Time: Quick to deploy.
– Transport: Suitable for short-term projects.
– Cost: Often higher operating costs.

2. Overhead Cranes (Bridge Cranes):
– Efficiency: Ideal for fixed-location operations like factories.
– Capacity Utilization: Maximizes lifting capability over long spans.
– Setup: Requires a significant initial setup.
– Cost: High upfront cost but lower long-term operational costs.

3. Tower Cranes:
– Height Advantage: Suitable for high-rise construction.
– Lifting Range: Can cover large areas at varying heights.
– Setup: Long setup and dismantling times.
– Cost: Expensive but essential for specific projects.

4. Gantry Cranes:
– Flexibility: Suitable for indoor and outdoor use.
– Portability: Can be moved on fixed tracks.
– Setup: Moderate setup time.
– Cost: Mid-range pricing, good for repetitive lifting tasks.

Performance Metrics

1. Lifting Capacity: All types are optimized to handle up to 20 tons effortlessly.
2. Reach and Span: Tower cranes offer the highest reach, while overhead cranes maximize horizontal span.
3. Mobility: Mobile cranes excel in this, whereas overhead and gantry cranes are more stationary.
4. Precision: Overhead cranes offer precise control for delicate operations.

Operational Considerations

1. Maintenance Requirements: Overhead cranes generally have lower maintenance needs compared to mobile cranes.
2. Safety Features: Modern cranes come equipped with advanced safety mechanisms, though tower cranes might have more rigorous safety protocols due to their height.
3. Environmental Impact: Electric overhead cranes are eco-friendlier compared to diesel-powered mobile cranes.

Cost Analysis

– Initial Investment: Tower and overhead cranes generally require a higher initial outlay.
– Operational Costs: Diesel-fueled mobile cranes have higher ongoing costs.
– Resale Value: Cranes with specialized capacities like tower cranes tend to maintain better resale value.

Conclusion

20 ton crane

“20 ton crane” Warranty and Support

Warranty and Support for 20-Ton Crane

Warranty Coverage:

Our 20-ton cranes come with a comprehensive warranty designed to give you peace of mind and protect your investment. The standard warranty covers parts and labor for a duration of 2 years from the date of purchase. During this period, any manufacturing defects or faulty components will be repaired or replaced at no additional cost to you.

Extended Warranty Options:

To further safeguard your crane, we offer extended warranty packages that can extend coverage up to 5 years. These packages are available for purchase at the time of your initial purchase or anytime within the original 2-year warranty period.

Support Services:

– 24/7 Customer Service: Our technical support team is available around the clock to answer any queries you might have, whether they are related to operation, maintenance, or troubleshooting.

– On-Site Assistance: For more complex issues, on-site assistance from our certified technicians can be arranged. This service is aimed at minimizing downtime and ensuring your crane is back in operation as quickly as possible.

– Preventive Maintenance: Regular check-ups are crucial for the optimal performance of your crane. We offer preventive maintenance plans that include periodic inspections, lubrication, and adjustments to ensure your crane operates at peak efficiency.

– Training Programs: Proper handling and operation are key to safety and longevity. We provide certified training programs tailored to your operators, focusing on both operational best practices and safety protocols.

– Spare Parts Availability: We stock a full range of genuine spare parts, ensuring that replacements are readily available whenever you need them. Our quick delivery service ensures you experience minimal downtime.

Contact Us:

If you have any questions or need immediate support, please contact our customer service hotline at 1-800-CRANE-20 or email us at [email protected]. Your satisfaction is our priority, and we’re committed to providing unparalleled support for the lifetime of your crane.
20 ton crane

List “20 ton crane” FAQ

20 Ton Crane FAQ

1. What is a 20 ton crane?
A 20 ton crane is a type of lifting equipment designed to safely lift and move loads up to 20 tons (40,000 pounds). These cranes are utilized in various industries, including construction, manufacturing, and shipping.

2. What types of 20 ton cranes are available?
Common types include overhead cranes, gantry cranes, mobile cranes, and tower cranes. The selection depends on the specific application and operational requirements.

3. What is the maximum lifting height?
The maximum lifting height varies depending on the crane model and configuration. Always consult the manufacturer’s specifications for accurate details.

4. What is the span of a 20 ton overhead crane?
The span can range from 10 to 30 meters, depending on the model and application. Custom spans can also be made to fit specific requirements.

5. What power sources are used?
20 ton cranes can be powered by electricity, diesel, or a combination of both. The power source depends on the type of crane and its usage environment.

6. Are 20 ton cranes mobile?
Some, like mobile and truck-mounted cranes, are designed for easy relocation. Overhead and gantry cranes are generally stationary but can be engineered with mobility features.

7. What safety features are included?
Standard safety features include overload protection, emergency stop buttons, limit switches, and anti-collision systems.

8. How much does a 20 ton crane cost?
Prices vary widely based on type, features, and brand. Generally, they can range from $50,000 to over $150,000.

9. How often should the crane be inspected?
Routine inspections should occur daily, with more thorough inspections monthly and annually, following regulatory standards.

10. Do operators need certification?
Yes, operators must be certified to operate a 20 ton crane safely, following OSHA or equivalent regulatory agency guidelines.

11. Can a 20 ton crane be customized?
Yes, manufacturers often offer customization options to meet specific operational needs, including bespoke spans, heights, and power configurations.
