Mobile jib cranes, widely used in various industries for lifting and moving heavy loads, must adhere to stringent safety standards to ensure operational safety and reliability. Several key certifications and standards apply to these cranes:

1. OSHA (Occupational Safety and Health Administration): OSHA sets forth regulations that govern the safe operation and maintenance of mobile jib cranes in the United States. Compliance with OSHA standards helps prevent workplace injuries and ensures safe working conditions.

2. ANSI (American National Standards Institute): ANSI B30.2 and B30.10 provide guidelines for overhead and gantry cranes, as well as hooks that are often part of jib cranes. These standards emphasize the design, inspection, testing, and maintenance of cranes.

3. CMAA (Crane Manufacturers Association of America): CMAA Specification No. 74 provides recommendations for the construction and use of jib cranes. It outlines design parameters, maintenance procedures, and safety guidelines.

4. ISO (International Organization for Standardization): ISO 9927-1 and ISO 4301-1 cover the requirements for the inspection and safe operation of cranes. These standards ensure that cranes meet global safety performance criteria.

5. EN Standards (European Norms): In Europe, EN 13001 specifies the general design principles for cranes, including jib cranes. This standard aims to ensure the structural integrity and safety of cranes under various operating conditions.

6. ASME (American Society of Mechanical Engineers): ASME B30.11 and B30.21 standards apply to monorails and underhung cranes, which include certain types of jib cranes. These standards cover safety, construction, and operation guidelines.

7. LOLER (Lifting Operations and Lifting Equipment Regulations): In the UK, LOLER regulations mandate thorough examinations, risk assessments, and proper maintenance of lifting equipment, including jib cranes.

These certifications and standards collectively ensure that mobile jib cranes are designed, manufactured, maintained, and operated with the highest safety considerations. Operators and employers must stay updated and compliant with these regulations to guarantee the crane’s safe and effective use.

List Reference Technical Parameters of “mobile jib crane”

Reference Technical Parameters of Mobile Jib Crane

1. Load Capacity: Determines the maximum weight the crane can safely lift, typically ranging from 0.5 to 5 tons.

2. Boom Length (Reach): The extent to which the crane’s arm can extend, generally between 2 to 6 meters.

3. Rotation Angle: The degree to which the crane’s jib can rotate, usually up to 360 degrees for full rotational capability.

4. Height Under Boom: Measurement from the ground to the lower edge of the jib when fully extended, typically between 2 to 5 meters.

5. Crane Height: Total height of the crane when in operation, generally slightly higher than the height under the boom.

6. Base Type & Dimensions: The type (e.g., mobile base, fixed base) and dimensions of the crane’s foundation, influencing stability and mobility.

7. Power Source: Specifies whether the crane is electric, diesel, or manually powered, affecting operational versatility and efficiency.

8. Hook Speed: The rate at which the lifting hook can move up and down, influencing job speed, commonly measured in meters per minute.

9. Motor Power: The power rating of the crane’s motor, crucial for performance, usually expressed in kilowatts (kW).

10. Control Type: The mode of operation, from manual and pendant control to advanced wireless remote control systems.

11. Weight: The overall weight of the crane, important for transport and installation logistics.

12. Mobility Features: Details like wheel type (e.g., pneumatic or solid) and steering capability for ease of movement on various surfaces.

13. Stabilizers: Outrigger systems and other mechanisms that ensure stability during heavy lifts.

14. Environmental Adaptability: The crane’s ability to operate in varying weather conditions or extreme environments.

15. Safety Features: Integrated features such as overload protection, emergency stop mechanisms, and anti-collision systems.

These parameters provide a comprehensive overview of a mobile jib crane’s capabilities, ensuring effective selection and use in various industrial applications.

List Product features of “mobile jib crane”

A mobile jib crane is designed to provide versatile lifting and material-handling solutions across various industries. Here are the key product features:

1. Mobility:
– Portability: Equipped with wheels or casters for easy movement around the workplace.
– Transportability: Can be relocated and positioned quickly to different job sites or within different areas of a facility.

2. Versatility:
– Adjustable Boom: The jib arm can often be adjusted for height and length to accommodate different tasks.
– 360-Degree Rotation: Some models offer full rotational capability, enhancing flexibility in material handling.

3. Load Capacity:
– Varied Capacities: Typically supports various weight ranges, from several hundred pounds to several tons, depending on the model.
– Balanced Design: Engineered to withstand maximum load capacities without tipping or instability.

4. Ease of Use:
– User-Friendly Controls: Hand-operated or remote-controlled mechanisms for precise lifting and positioning.
– Quick Setup: Minimal setup time required, allowing for immediate use upon relocation.

5. Durability:
– Robust Construction: Made from heavy-duty materials like steel to ensure long-term durability and performance.
– Weather Resistance: Models intended for outdoor use are often coated to resist rust and corrosion.

6. Safety Features:
– Stability Mechanisms: Designed with stabilizers or outriggers to maintain balance and prevent tipping.
– Braking Systems: Often include brakes on wheels or casters to secure the crane in position during operation.

7. Customization:
– Attachments and Accessories: Compatible with various attachments like hooks, chains, or magnets for more specialized tasks.
– Modular Components: Can be customized or extended with additional parts to meet specific needs.

8. Maintenance:
– Low Maintenance: Engineered for easy maintenance with accessible parts and minimal service requirements.

These features make mobile jib cranes an essential tool for enhancing productivity and ensuring safe, efficient lifting operations in industries like construction, manufacturing, warehousing, and logistics.

List Various Types of “mobile jib crane”

Mobile jib cranes are versatile lifting devices used in various industries for handling materials efficiently. They combine the mobility of wheeled or tracked bases with the reach and flexibility of jib arms, enabling quick and precise positioning of loads. Here are various types of mobile jib cranes:

1. Trailer-Mounted Jib Cranes

– Description: These cranes are mounted on trailers, making them easy to tow with a vehicle.
– Usage: Commonly used in construction and utilities for transporting and lifting equipment to remote locations.

2. Self-Propelled Mobile Jib Cranes

– Description: These cranes have built-in propulsion systems, allowing them to navigate job sites without external towing.
– Usage: Ideal for large industrial facilities where frequent movement around the site is required.

3. Truck-Mounted Jib Cranes

– Description: Installed on the bed of a truck, these cranes offer the flexibility of a mobile crane with the reach of a jib arm.
– Usage: Widely used in logistics, construction, and utility repair tasks.

4. Portable Foldable Jib Cranes

– Description: Compact, foldable units that can be transported and set up with minimal effort.
– Usage: Suitable for workshops, warehouses, and small construction sites that require occasional lifting.

5. Crawler-Mounted Jib Cranes

– Description: These cranes are mounted on crawler tracks, providing enhanced stability and the capability to move over rough terrain.
– Usage: Used in construction sites, especially in areas with uneven or soft ground.

6. Rail-Mounted Mobile Jib Cranes

– Description: Mounted on rails, these cranes combine the mobility of rail systems with the reach of jib arms.
– Usage: Found in shipyards, factories, and warehouses where linear travel is essential.

7. Hydraulic Mobile Jib Cranes

– Description: These cranes use hydraulic systems for lifting and maneuvering, providing smooth and precise operations.
– Usage: Ideal for heavy-duty lifting in industrial settings, including manufacturing plants and heavy equipment maintenance.

8. Electric Mobile Jib Cranes

– Description: Powered by electric motors, these cranes offer eco-friendly lifting solutions.
– Usage: Commonly used indoors in factories and warehouses to reduce emissions and noise.

Conclusion

Each type of mobile jib crane has its specific applications, strengths, and operational environments, making them indispensable across various industries for efficient material handling and lifting tasks.

List Application of “mobile jib crane”

A mobile jib crane is a versatile and efficient lifting device commonly used in various industries for material handling. Capable of moving around a work facility and reaching places traditional cranes cannot, it addresses diverse application needs. Here are some of its key applications:

1. Manufacturing Plants:
– Assembly Line Work: Move large components and position them precisely during the assembly process.
– Loading and Unloading: Handle raw materials and finished products, enhancing workflow efficiency and reducing manual labor.

2. Warehouses and Distribution Centers:
– Inventory Management: Assist in organizing heavy items on shelves or racks, facilitating quick access and stock rotation.
– Loading Bays: Load and unload trucks or shipping containers, speeding up the logistics and distribution process.

3. Construction Sites:
– Material Placement: Transport and position building materials like steel beams, pipes, and concrete blocks to exact locations on-site.
– Temporary Infrastructure: Assist in assembling and disassembling temporary structures, scaffolding, and formwork.

4. Ports and Shipyards:
– Cargo Handling: Lift and move shipping containers, heavy machinery, and large parts required for shipbuilding and maintenance.
– Dockside Operations: Support offshore drilling activities by moving equipment and supplies onto ships or rigs.

5. Automotive Industry:
– Vehicle Assembly: Aid in the precise placement of large automotive parts and machinery during the manufacturing process.
– Maintenance and Repairs: Move and position heavy engines and other automotive components for repair and maintenance.

6. Metal Fabrication Workshops:
– Handling Large Metal Pieces: Transport and position sheets, plates, and structural components for machining, welding, or assembly.
– Tool and Die Maintenance: Lift and move heavy tools and dies, ensuring smooth operations and reducing downtime.

7. Aerospace Industry:
– Aircraft Assembly and Maintenance: Manage large, delicate parts like wings, fuselage components, and engines with precision.
– Material Handling in Hangars: Transport parts and equipment within hangar facilities, improving workflow and safety.

In summary, mobile jib cranes boost operational efficiency, safety, and productivity across a wide range of industries.

List Buyer Types of “mobile jib crane”

A mobile jib crane is versatile equipment commonly used for lifting and moving heavy loads in various industries. Given its functionality and efficiency, several buyer types are typically interested in purchasing mobile jib cranes:

1. Construction Companies:
– Use: Often used for lifting heavy construction materials, tools, and equipment on job sites.
– Need: Portability and the ability to operate in confined spaces.

2. Manufacturing & Industrial Plants:
– Use: Essential for assembly lines, material handling, and moving parts within the facility.
– Need: Reliable operation to minimize downtime and enhance productivity.

3. Warehousing & Logistics Firms:
– Use: Handling and transporting goods within warehouses, loading/unloading trucks.
– Need: High flexibility and efficient space usage.

4. Shipyards & Ports:
– Use: Loading and unloading cargos, parts, and equipment from ships.
– Need: High load capacity and adaptability to different environments.

5. Automotive Industry:
– Use: Handling car parts and modules during the manufacturing and assembly process.
– Need: Precision and control in handling complex components.

6. Utility and Maintenance Services:
– Use: Lifting and placing equipment during maintenance tasks.
– Need: Quick deployment and ease of maneuverability in various locations.

7. Mining Operations:
– Use: Moving heavy machinery components and materials in mining sites.
– Need: Robust and durable equipment capable of withstanding harsh conditions.

8. Rental Equipment Companies:
– Use: Offering cranes for short-term projects or temporary needs of various industries.
– Need: Versatile and easy-to-maintain equipment.

These diverse buyer types reflect the broad applicability of mobile jib cranes, each with distinct operational needs that a mobile jib crane can efficiently meet.

List “mobile jib crane” Project Types for Different Industries

List of Mobile Jib Crane Project Types for Different Industries

1. Construction Industry
– Site Material Handling: Mobile jib cranes are used to transport and lift construction materials such as steel beams, concrete blocks, and piping.
– Assembly of Structures: Assisting in the erection and placement of structural components in building projects.
– Worker Safety Equipment: Used to move and position safety equipment like harnesses and scaffolding.

2. Manufacturing Industry
– Production Line Assistance: Facilitating the movement of heavy components along assembly lines.
– Maintenance Operations: Assisting in the maintenance and repair of manufacturing machinery by lifting and positioning parts.
– Loading and Unloading: Material handling between different stages of manufacturing and at docking areas.

3. Automotive Industry
– Engine Assembly: Lifting and positioning engines and transmissions during vehicle assembly.
– Logistics Support: Loading and unloading heavy automotive components in warehouses and distribution centers.
– Maintenance and Repairs: Used in repair shops for handling car parts during maintenance.

4. Aerospace Industry
– Aircraft Assembly: Assisting in the precise placement and fitting of aircraft parts during assembly.
– Component Handling: Moving and positioning large aerospace components in factories and hangars.
– Maintenance Routines: Supporting regular maintenance and repair operations by lifting heavy parts.

5. Maritime Industry
– Shipbuilding: Lifting and positioning large ship parts and assemblies during ship construction.
– Dockside Operations: Handling cargo loading and unloading operations at docks and shipyards.
– Maintenance Tasks: Used for maintenance and repair of ships and docking infrastructure.

6. Mining Industry
– Equipment Handling: Moving and placing heavy mining equipment and machinery in operational areas.
– Material Transportation: Transporting raw materials from extraction sites to processing areas.
– Safety Operations: Handling safety equipment and materials in challenging terrain.

7. Warehousing and Logistics
– Inventory Management: Assisting in the organization and movement of heavy goods within warehouses.
– Loading Docks: Facilitating the loading and unloading of heavy shipments on and off vehicles.
– Distribution Centers: Enhancing logistical efficiency by aiding in the movement of bulky items.

8. Energy Sector
– Wind Turbine Assembly: Used in the assembly and maintenance of wind turbines by lifting heavy components.
– Oil and Gas Operations: Assisting in the handling of heavy equipment in drilling operations and refinery sites.

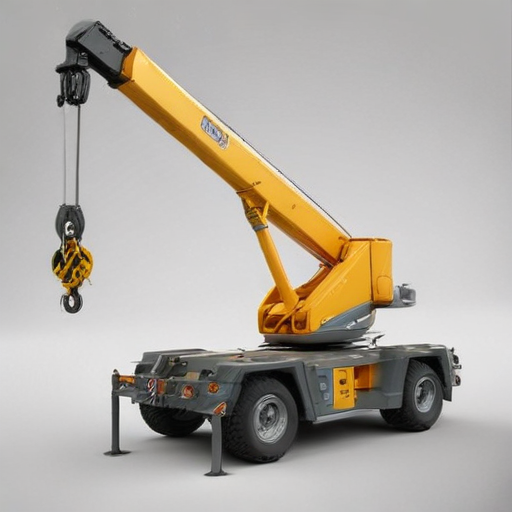

mobile jib crane

mobile jib crane Accessories Upgrades and Custom Manufacturing Options

Mobile jib cranes are highly versatile lifting solutions for a range of industries. Various accessories, upgrades, and custom manufacturing options can enhance their functionality, safety, and efficiency.

Accessories:
1. Hooks and Grabs: Different types of hooks and hydraulic grabs can be attached for specialized lifting tasks.
2. Remote Control Systems: Wireless remote controls offer operators the convenience of maneuvering the crane from a distance.
3. Outriggers: Stabilizing outriggers can be added for securing the crane during heavy lifts.
4. Lights and Alarms: Integrated lighting and audible warning systems can improve safety, especially in low-visibility conditions.
5. Load Indicators and Scales: Digital load indicators and weighing systems provide real-time weight measurement to prevent overloading.

Upgrades:
1. Electric Motors: Upgrading to more efficient electric motors can improve operational efficiency and reduce power consumption.
2. Custom Boom Lengths: Extendable or retractable booms offer flexibility for a variety of applications.
3. Ergonomic Controls: Upgraded control panels and joysticks can enhance operator comfort and precision.
4. Heavy-Duty Wheels: Reinforced or specialized wheels can improve mobility on rough or uneven surfaces.
5. Hydraulic Systems: Advanced hydraulic systems can provide smoother and more controlled movements.

Custom Manufacturing Options:
1. Material Selection: High-strength alloys or corrosion-resistant materials can be used for specific environments.
2. Color and Finish: Custom paint jobs and coatings can be applied for branding or additional protection.
3. Capacity Enhancement: Tailoring the crane to handle heavier loads or wider spans according to project requirements.
4. Specialized Attachments: Custom end-effectors, such as vacuum lifters or magnetic lifters, for unique handling requirements.
5. Compact Designs: Space-saving designs can be engineered for facilities with limited room.

Overall, these options allow mobile jib cranes to meet specific operational needs, improve safety, and enhance efficiency, making them ideal for a wide range of applications.

List Quality Control and The Manufacturing Process of “mobile jib crane”

Quality Control in Mobile Jib Crane Manufacturing:

1. Material Inspection: Raw materials, such as steel and hydraulic components, are scrutinized for compliance with specifications.
2. Welding Inspection: Weld quality is examined using non-destructive testing (NDT) methods like ultrasonic or magnetic particle testing.
3. Dimensional Accuracy: Measurements and tolerances of machined and fabricated components are verified with precision instruments.
4. Load Testing: Cranes are subjected to load tests to ensure structural integrity and load-bearing capacity.
5. Functional Testing: All mechanical and hydraulic systems are tested to guarantee proper operation.
6. Surface Finish: Coatings and paints are inspected for uniformity and adherence, protecting against corrosion.
7. Documentation and Compliance: Quality documentation is maintained for traceability and regulatory compliance.
8. Final Inspection: A comprehensive check before shipping to ensure that the crane meets all quality and safety standards.

Manufacturing Process of Mobile Jib Crane:

1. Design and Engineering: Detailed designs and specifications are created using CAD software, considering load requirements and safety standards.
2. Material Procurement: High-quality raw materials are sourced according to design specifications.
3. Cutting and Shaping: Steel is cut and shaped using CNC machines, plasma cutters, or saws to form the basic structural components.
4. Welding and Assembly: Components are welded together according to engineering blueprints. Assembly of the jib arm, base, and other structural elements follows.
5. Machining: Precise machining of parts for the crane’s mechanical and hydraulic systems.
6. Hydraulic Systems Installation: Hydraulic systems, including pumps, hoses, and cylinders, are installed.
7. Electrical Systems: Wiring and control systems are integrated for operational control.
8. Surface Treatment: Components are treated for corrosion resistance, including sandblasting and painting.
9. Assembly and Testing: The whole crane is assembled and subjected to rigorous testing for performance and safety.
10. Quality Assurance and Certification: Final checks and certification are obtained as per industry standards.
11. Packaging and Shipping: The crane is disassembled if required, securely packed, and shipped to the customer.

This concise overview encapsulates the meticulous quality control and systematic manufacturing process involved in creating a mobile jib crane.

How to use “mobile jib crane”

A mobile jib crane is a versatile lifting device that can be moved around a work site to provide convenient lifting and positioning of heavy loads. Here are the steps to effectively use a mobile jib crane:

1. Preparation:
– Ensure that the crane and the surrounding area are inspected for any potential hazards.
– Check the crane’s load capacity and make sure the load does not exceed the limit.

2. Positioning:
– Move the crane to the desired location.
– Ensure the base is stable and on a level surface.
– Engage the brakes or stabilizers to prevent movement.

3. Load Attachment:
– Attach the load to the crane’s hook using appropriate slings or lifting devices.
– Ensure that the load is securely fastened and balanced.

4. Operation:
– Use the control panel or remote to lift the load smoothly.
– Operate the crane’s arm (jib) to move the load horizontally or to position it as required.
– Keep movements slow and deliberate to maintain control of the load.

5. Placing the Load:
– Carefully lower the load to its intended position.
– Make sure the area where the load will be placed is clear and stable.

6. Shutdown:
– Once the task is complete, unhook the load.
– Return the crane to its storage position.
– Perform any necessary post-operation checks or maintenance.

Safety Tips:
– Always follow the manufacturer’s instructions and guidelines.
– Never exceed the crane’s rated capacity.
– Keep the work area clear of unnecessary personnel.
– Use personal protective equipment (PPE) as required.

Using a mobile jib crane correctly enhances efficiency and safety in material handling tasks. Proper training and adherence to safety protocols are crucial.

“mobile jib crane” Comparative Analysis

Comparative Analysis of Mobile Jib Cranes

Mobile jib cranes are versatile lifting devices widely used in various industries due to their flexibility and ease of mobility. Here, we will compare key aspects of different mobile jib cranes to guide informed decision-making.

1. Design and Mobility:
– Manual Mobile Jib Cranes: Operated manually and typically feature a wheeled base for easy transportation. Suitable for small to medium lifting tasks where power sources are limited.
– Electric Mobile Jib Cranes: Equipped with electric motors to enhance lifting capabilities and speed. Ideal for more intensive tasks, providing precision and efficiency.

2. Load Capacity:
– Light-Duty (Up to 1 Ton): Perfect for workshops and light manufacturing processes. These cranes are easily maneuverable and require minimal effort.
– Heavy-Duty (1-5 Tons and Above): Designed for larger construction sites and industrial applications. These cranes feature robust structures and advanced safety features to handle significant weights.

3. Arm Reach and Rotation:
– Fixed-Arm Cranes: Offer a consistent reach but limited flexibility. Best for repetitive tasks in confined areas.
– Articulating Arm Cranes: Feature jointed arms providing greater flexibility and reach. Useful in complex environments needing varied movements.

4. Power Source:
– Battery-Powered: Offers mobility without being tethered to a power source. Suitable for remote locations but requires diligent battery maintenance.
– Plug-in Electric: Provides consistent power but can be restricted by cord length and availability of power outlets.
– Hydraulic: Utilizes hydraulic power, ideal for heavy lifting with precise control. However, maintenance can be more demanding.

5. Safety Features:
– Basic Models: Typically equipped with essential safety features like brakes and overload protection.
– Advanced Models: Include sophisticated sensors, automatic shutdowns, and user-friendly control systems promoting higher safety standards.

In conclusion, selecting the right mobile jib crane involves analyzing specific requirements such as load capacity, power source, mobility, and safety needs. Understanding these factors ensures efficient and safe operational outcomes tailored to varied industrial scenarios.

“mobile jib crane” Warranty and Support

Warranty and Support for Mobile Jib Crane

Our mobile jib cranes are backed by a comprehensive warranty and dedicated support to ensure your investment is protected and provides long-lasting performance.

Warranty:
We offer a standard 2-year warranty on all our mobile jib cranes, which covers defects in materials and workmanship. This warranty begins from the date of delivery and includes the following:
– Full repair or replacement of defective parts.
– Labor costs for repairs performed by our authorized service technicians.
– Coverage for electrical and mechanical components.

Exclusions:
The warranty does not cover:
– Normal wear and tear.
– Damage caused by misuse, neglect, or unauthorized modifications.
– Maintenance-related issues.

Extended Warranty:
Optionally, customers can purchase an extended warranty for up to 5 years, offering additional peace of mind and protection.

Support:
Our dedicated support team is available to assist with any issues, providing:
– 24/7 customer service hotline for immediate assistance.
– On-site inspections and maintenance services.
– Access to a comprehensive spare parts inventory.
– Technical support via phone, email, or online chat.

Preventive Maintenance Program:
Enroll in our preventive maintenance program to ensure your crane operates at peak efficiency. This includes:
– Regularly scheduled inspections.
– Detailed maintenance reports.
– Priority service scheduling.

Training:
We offer training programs for operators to ensure safe and efficient use of your mobile jib crane. Training sessions can be conducted on-site or remotely, covering:
– Basic operation procedures.
– Safety protocols.
– Routine maintenance tips.

By choosing our mobile jib cranes, you benefit from a robust warranty and exceptional support, guaranteeing reliable performance and minimal downtime. For more details or to discuss specific needs, please contact our customer service team.

List “mobile jib crane” FAQ

Certainly! Here are some frequently asked questions (FAQ) about mobile jib cranes:

1. What is a mobile jib crane?
A mobile jib crane is a versatile lifting device characterized by a pivoting jib arm mounted on a movable base. It is designed to provide flexibility in lifting and moving loads across different locations within a facility.

2. What are the key components of a mobile jib crane?
The main components include the jib arm, mast or column, movable base (often on wheels), and lifting mechanism such as a hoist or winch.

3. What are the typical applications for mobile jib cranes?
They are commonly used in workshops, warehouses, manufacturing plants, and construction sites for tasks like material handling, loading and unloading goods, and positioning heavy equipment.

4. What are the weight capacities of mobile jib cranes?
Capacity varies widely, typically ranging from a few hundred kilograms to several tons. It’s crucial to choose a model suited to your specific lifting requirements.

5. How is a mobile jib crane powered?
Most mobile jib cranes are manually operated, but some models may include powered hoists or electric motors for enhanced lifting capabilities.

6. What are the advantages of using a mobile jib crane?
Key advantages include flexibility, ease of movement, versatility in use, and reduced need for multiple fixed lifting devices.

7. Are there any safety features to consider?
Yes, common safety features include locking mechanisms for wheels and bases, overload protection, and safety latches on hooks and attachments.

8. How do you maintain a mobile jib crane?
Regular maintenance involves checking for wear and tear, lubricating moving parts, ensuring the integrity of the lifting mechanism, and performing routine safety inspections.

9. What are the main factors to consider when purchasing a mobile jib crane?
Consider weight capacity, jib arm length, base stability, mobility, lifting height, and the specific needs of your operations.

10. Do you need special training to operate a mobile jib crane?
While many models are user-friendly, operators should undergo basic training to ensure safe and efficient use. Familiarity with safety guidelines and proper handling is essential.

By providing these answers, you should have a good foundational understanding of mobile jib cranes and their uses.
