motorized gantry crane Safety Certifications
Ensuring safety in the operation of motorized gantry cranes is of paramount importance and relies heavily on adherence to various safety certifications and standards. Below are some key certifications and standards relevant to motorized gantry cranes:
1. OSHA (Occupational Safety and Health Administration) Regulations: In the United States, OSHA provides comprehensive guidelines for crane operation, including inspections, maintenance, and operator training. Compliance with OSHA 29 CFR 1910.179 and 1926 subpart CC is crucial for safety.
2. ASME (American Society of Mechanical Engineers) B30.2: This standard covers overhead and gantry cranes, including their design, inspection, and testing. It provides detailed criteria for safe crane operation, load handling, and periodic inspections.
3. ISO (International Organization for Standardization) 23853: This standard focuses on market-specific safety requirements, including inspection, maintenance, and operation of cranes. It is widely recognized and adopted internationally.
4. EN 15011: This European Standard specifies safety requirements for both the mechanical and electrical aspects of cranes, including gantry cranes. It is integral for companies operating within European borders.
5. CMAA (Crane Manufacturers Association of America) Specifications: These specifications offer detailed guidelines on crane design, installation, and performance. It complements OSHA regulations and is often seen as an additional requirement for ensuring rigorous safety standards.
6. FEM (European Materials Handling Federation) Standards: These standards provide guidelines for the design, operation, and maintenance of material handling equipment, ensuring safety and efficiency.
7. ANSI (American National Standards Institute): ANSI standards cover various aspects of crane safety, such as operator training, inspection, and maintenance protocols.
8. CSA (Canadian Standards Association): The CSA provides standards for the safe operation of cranes in Canada, focusing on structural integrity, operator safety, and environmental considerations.
Adhering to these certifications not only ensures legal compliance but also significantly mitigates the risks of accidents, thereby protecting both personnel and equipment.
List Reference Technical Parameters of “motorized gantry crane”
Certainly! A motorized gantry crane is an advanced piece of material handling equipment used primarily for lifting, moving, and positioning heavy loads. Here are the key technical parameters to consider:
1. Load Capacity:
– Rated Load: Maximum weight the crane can safely lift, typically measured in tons (e.g., 5 tons, 10 tons).
– Safety Factor: Ensures the crane can handle loads beyond the rated capacity for safety (e.g., 1.25 times the rated load).
2. Span:
– Horizontal Distance: The width between the crane’s legs or supports, typically measured in meters.
3. Lift Height:
– Vertical Distance: Maximum height to which the crane can lift a load, measured in meters.
4. Crane Dimensions:
– Overall Height and Width: Total physical dimensions of the crane, essential for installation and operational planning.
5. Travel Speed:
– Hoist Speed: Speed at which the hook and load are raised and lowered, often given in meters per minute.
– Trolley Speed: Speed at which the hoist trolley moves horizontally along the beam.
– Gantry Travel Speed: Speed at which the entire crane moves along its tracks or wheels.
6. Power Supply:
– Voltage and Frequency: Electrical parameters required for the crane’s operation, typically in volts (e.g., 380V 50Hz).
7. Control System:
– Operational Interface: Type of control, such as pendant control, wireless remote control, or cabin control.
– Programmable Features: Automation capabilities and programmable settings for precision operation.
8. Construction Materials:
– Frame Material: Typically high-strength steel for durability and load-bearing capacity.
– Corrosion Protection: Coating or treatment to resist rust and wear, especially for outdoor or harsh environments.
9. Safety Features:
– Limit Switches: Prevent over-travel of the crane and hoist.
– Emergency Stop: Immediate power cut-off for safety.
– Overload Protection: Sensors to prevent lifting beyond rated capacity.
10. Compliance Standards:
– Adherence to local and international safety and performance standards (e.g., ANSI, OSHA, ISO).
These technical parameters ensure that a motorized gantry crane performs efficiently, safely, and meets the specific needs of the operation.
List Product features of “motorized gantry crane”
Sure, here are the product features of a motorized gantry crane:
1. Load Capacity: Can handle varying weights, often ranging from a few tons to hundreds of tons, depending on the model.
2. Adjustable Height: Many models have telescoping legs that can adjust the height to accommodate different lifting needs.
3. Span Length: The span can vary to cover different widths, suitable for various operational requirements.
4. Motorized Travel: Fitted with motorized components to facilitate easy movement along the designated track or floor.
5. Electric or Hydraulic Hoist: Includes powerful hoisting mechanisms that can be electrically or hydraulically operated.
6. Wireless Remote Control: Allows for remote operation, improving safety and convenience.
7. Variable Speed Controls: Offers adjustable speed settings for precise lifting and lowering.
8. Safety Features: Includes emergency stop buttons, overload protection, and limit switches for safe operation.
9. Durable Construction: Made from high-quality steel or aluminum, designed to withstand heavy-duty use and harsh environments.
10. Easy Installation: Typically comes with easy-to-follow assembly instructions, and some provide modular components for quick setup.
11. Portability: Many models have wheels and casters for easy relocation within a facility.
12. Outdoor and Indoor Use: Designed for versatile use in various settings, including warehouses, workshops, and construction sites.
13. Customizable Options: Can be tailored to specific operational needs with additional accessories such as spreader bars, lifting beams, and specialized hooks.
14. Power Supply Options: Can be equipped to run on different power sources, including single-phase or three-phase electric power.
15. Weather Resistance: Some models are treated or coated for corrosion resistance, making them suitable for outdoor use.
16. Efficiency: Engineered to improve workflow efficiency by reducing manual labor and speeding up material handling processes.
List Application of “motorized gantry crane”
A motorized gantry crane is a versatile lifting device used across various industries for handling and moving heavy loads. Here are some key applications:
1. Warehousing and Distribution:
– Used for loading and unloading goods from trucks.
– Efficiently moves inventory around the warehouse.
2. Construction Sites:
– Helps lift and position building materials like steel beams and concrete blocks.
– Used for assembling large structural components.
3. Manufacturing and Industrial Plants:
– Facilitates the assembly of heavy machinery and equipment.
– Transports raw materials to different stages of the production line.
4. Shipyards and Ports:
– Assists in loading and unloading shipping containers.
– Moves bulky marine equipment like engines and ship parts.
5. Railway Yards:
– Handles railcar components and heavy materials required for track maintenance.
– Used in assembling and disassembling rail cars.
6. Aerospace Industry:
– Helps in the fabrication and assembly of aircraft parts.
– Transports specialized heavy equipment required for aircraft maintenance.
7. Mining Operations:
– Lifts and transports heavy mining equipment and ores.
– Aids in the assembly of mining machinery.
8. Auto Repair Shops:
– Used for lifting engines and other heavy automotive components.
– Assists in the repair and maintenance of large vehicles.
9. Wind Turbine Manufacturing:
– Facilitates the assembly and installation of large wind turbine components.
– Moves large turbine blades and nacelles.
10. Power Plants:
– Lifts and positions heavy equipment such as generators and transformers.
– Used for maintenance tasks like replacing large components.
Motorized gantry cranes enhance efficiency, safety, and precision in these diverse applications by providing reliable heavy lifting capabilities.
List Various Types of “motorized gantry crane”
Motorized gantry cranes are essential lifting devices used in various industries to move heavy objects with precision and ease. Here are some common types:

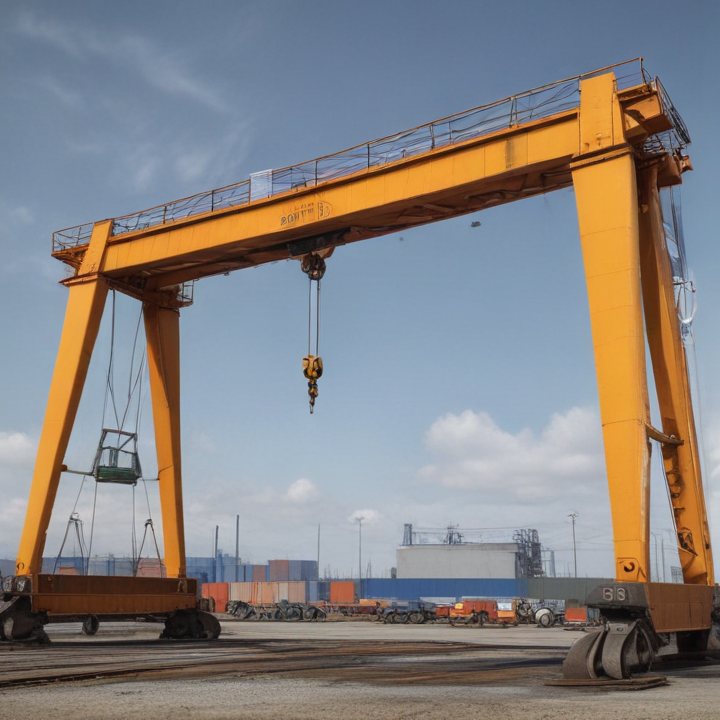

1. Full Gantry Crane:
– Features: Full rail system and a full-length bridge.
– Applications: Ports, shipyards, and large construction sites.
2. Semi-Gantry Crane:
– Features: One leg runs on a rail while the other side is supported by a wall or structure.
– Applications: Factories, workshops, and storage yards with restricted space.
3. Portable Gantry Crane:
– Features: Adjustable height and can be easily moved.
– Applications: Light-duty tasks, maintenance, repair tasks.
4. Adjustable Height Gantry Crane:
– Features: Height adjustable capability for versatility.
– Applications: Settings requiring varied lifting heights, like auto repair shops and light manufacturing.
5. Single Girder Gantry Crane:
– Features: Single horizontal girder.
– Applications: Light to medium duty applications, warehouses, and assembly lines.
6. Double Girder Gantry Crane:
– Features: Two horizontal girders for increased strength.
– Applications: Heavy-duty lifting, shipbuilding, large infrastructure projects.
7. Truss Gantry Crane:
– Features: Truss structure for wind resistance.
– Applications: Outdoor projects where wind load is a concern.
8. Rail-Mounted Gantry Crane (RMG):
– Features: Runs on fixed rails.
– Applications: Container handling at ports, large storage yards.
9. Rubber-Tyred Gantry Crane (RTG):
– Features: Rubber tires for mobility.
– Applications: Container terminals, outdoor yards where mobility is required.
10. Cantilever Gantry Crane:
– Features: Extended boom, can work outside the supporting rails.
– Applications: Handling long items, bulk materials where overhanging capability is required.
These various types cater to a range of lifting needs, offering flexibility and specialized solutions.
motorized gantry crane Accessories Upgrades and Custom Manufacturing Options
Motorized gantry cranes are versatile tools used in various industrial applications for lifting and moving heavy loads. To enhance their performance, a range of accessories, upgrades, and custom manufacturing options are available.
Accessories:
1. Remote Controls: Enable operators to maneuver the crane safely from a distance, improving precision and safety.
2. Load Cells: Integrated load monitoring systems to ensure operations are within safe weight limits.
3. Variable-Frequency Drives (VFDs): These provide smoother acceleration and deceleration, reducing mechanical stress and enhancing lifespan.
4. Lighting Kits: Essential for night operations or poorly lit areas.
5. Magnetic Lifters: Ideal for handling ferrous materials without slings or hooks.
Upgrades:
1. Motor Upgrades: Higher capacity motors can handle heavier loads and increase operation speeds.
2. Enhanced Safety Systems: These include anti-collision sensors, emergency stop functions, and automated shutdown protocols for operational safety.
3. Weather-Proofing: Ensures the crane can operate in extreme weather conditions, including rain, snow, and high winds.
4. Noise Reduction Kits: These minimize operational noise, improving the work environment, especially in urban settings.
5. Wireless Connectivity: Integrates the crane with IoT systems for real-time monitoring and predictive maintenance.
Custom Manufacturing Options:
1. Dimensions and Capacity: Customizable span, height, and lifting capacity to meet specific project requirements.
2. Material Choices: Options include stainless steel for corrosive environments or aluminum for lightweight applications.
3. Specialized Trolleys: Custom trolleys designed for specific load types or operational conditions.
4. Paints and Coatings: Specialized coatings for durability and resistance to chemicals, abrasives, and extreme temperatures.
5. Automation Features: Fully automated systems with programmable controls for repetitive tasks, enhancing efficiency and consistency.
These accessories, upgrades, and custom options can significantly enhance the functionality, safety, and lifespan of motorized gantry cranes, making them adaptable for a wide range of industrial tasks.
List Quality Control and The Manufacturing Process of “motorized gantry crane”
Quality Control in Motorized Gantry Crane Manufacturing
1. Design Verification: Ensure the crane design complies with safety standards and client specifications.
2. Material Inspection: Verify the quality and specifications of raw materials through certificates and laboratory testing.
3. Supplier Assessment: Evaluate and audit suppliers for material consistency and reliability.
4. Dimensional Checks: Regularly measure components to assure they meet design tolerances.
5. Welding Inspections: Use techniques like X-ray, ultrasonic, and dye penetrant tests to check weld integrity.
6. Load Testing: Conduct static and dynamic load tests to ensure stability and structural integrity.
7. Electrical Testing: Inspect and test electrical systems for safety and functionality.
8. Component Verification: Check sub-assemblies (motors, gears, etc.) for compliance before integration.
9. Final Inspection: Perform a thorough check of the completed crane, simulating operating conditions.
10. Documentation Review: Ensure all quality records, test reports, and compliance certificates are complete.
Manufacturing Process of Motorized Gantry Crane
1. Design and Engineering:
– Create detailed plans and specifications.
– Use CAD software for precision.
2. Material Procurement:
– Source high-grade steel, motors, control units, and other necessary components.
3. Cutting and Shaping:
– Cut steel beams and plates to required sizes using CNC machines.
4. Welding:
– Assemble structural components through heavy-duty welding.
– Perform welding inspections to ensure joints meet safety standards.
5. Machining:
– Machine parts for precision fits and surface finishes.
6. Surface Treatment:
– Apply anti-corrosive coatings or paint to protect against environmental damage.
7. Sub-Assembly:
– Assemble smaller parts like the trolley, hoist, and control units.
8. Main Assembly:
– Integrate all sub-assemblies onto the main structure.
– Install and align motors, gears, and control systems.
9. Testing:
– Conduct load tests, functional tests, and safety checks.
– Ensure that all electronic and manual controls operate correctly.
10. Packaging and Shipping:
– Prepare the crane for shipment with protective packaging.
– Ensure safe and secure transport to the client’s location.
11. Installation and Commissioning:
– Assemble and test the crane at the site.
– Provide training for operators and maintenance staff.
How to use “motorized gantry crane”
A motorized gantry crane is a versatile piece of lifting equipment used for moving heavy loads in various industrial settings. Here’s a simple guide on how to use it effectively and safely:
Preparation:
1. Training: Ensure operators are trained and familiar with the crane’s controls and safety procedures.
2. Inspection: Conduct a thorough inspection of the crane, including checking for any signs of wear or damage, ensuring it is in good working condition.
Operating the Gantry Crane:
1. Setup: Position the gantry crane over the load. Make sure the area is clear of any obstructions.
2. Adjustments: Adjust the height of the crane if necessary, using the provided controls to ensure it is appropriate for the task at hand.
3. Rigging: Attach the load securely to the crane using appropriate slings, chains, or lifting devices. Ensure the load is balanced and the rigging is secure and rated for the load’s weight.
Lifting:
1. Controls Check: Familiarize yourself with the crane’s control panel, typically including buttons for up, down, left, right, forward, and backward movements.
2. Lifting the Load: Gently raise the load a few inches to ensure it is balanced and securely rigged before moving it.
3. Moving the Load: Slowly and steadily transport the load to the desired location, using the horizontal and vertical controls to navigate.
Placement:
1. Positioning: Lower the load carefully into place, ensuring it is stable and positioned correctly.
2. Unrigging: Detach the rigging equipment safely after the load is securely placed.
3. Inspection: Conduct a final inspection of the load and rigging equipment to ensure everything is in order.
Safety:
– Always follow manufacturer guidelines and safety protocols.
– Do not exceed the crane’s load capacity.
– Ensure a clear area underneath the load during lifting and moving operations.
By following these steps, you can use a motorized gantry crane effectively with safety in mind.
“motorized gantry crane” Comparative Analysis
A motorized gantry crane is an essential equipment used across various industries for lifting, moving, and positioning heavy loads. This comparative analysis evaluates its features, applications, advantages, and limitations relative to other types of cranes, such as overhead cranes and jib cranes.
Features: Motorized gantry cranes typically consist of a bridge supported by two freestanding legs moving along a track. They are powered by electric motors for both lifting and movement, making them highly efficient. Unlike manual gantry cranes, motorized versions offer greater precision and speed.
Applications: These cranes are commonly used in shipping yards, warehouses, and manufacturing plants. They excel in settings where flexibility is paramount, as they can be easily moved and positioned according to the needs of the workspace. In comparison, overhead cranes are ideal for fixed-path lifting inside factories, while jib cranes are better suited for localized lifting tasks.
Advantages:
1. Mobility and Flexibility: Unlike stationary overhead cranes, motorized gantry cranes can be relocated, providing greater operational flexibility.
2. Load Capacity: They can lift substantial loads, often up to several tons, making them suitable for heavy-duty applications.
3. Cost-Effectiveness: They can be more economical than installing permanent structures like overhead cranes, particularly in temporary or changing work environments.
4. Ease of Installation: Quick to set up and can be used in multiple locations without the need for comprehensive infrastructure.
Limitations:
1. Space Requirement: Motorized gantry cranes require significant floor space, which can be a drawback in confined areas.
2. Surface Dependency: Their movement is limited by the quality of the floor surface; uneven or obstructed floors can impede their operation.
3. Initial Investment: While more flexible, they can have a higher upfront cost compared to simpler lifting solutions like jib cranes.
In summary, motorized gantry cranes offer a versatile and powerful solution for heavy lifting, with a balance of mobility and capacity. However, their utility must be weighed against space constraints and initial costs relative to other fixed or localized lifting systems.
“motorized gantry crane” Warranty and Support
Warranty and Support for Motorized Gantry Crane
Warranty:
All our motorized gantry cranes are backed by a comprehensive 2-year warranty, ensuring peace of mind and reliable performance. The warranty covers defects in materials and workmanship under normal use and includes:
1. Structural Components: Coverage for beams, supports, and framework against structural defects.
2. Mechanical Parts: Protection for the motor, hoist, drive systems, and other mechanical parts.
3. Electrical Components: Warranty for electrical controls, wiring, and sensors.
Our warranty does not cover damage resulting from:
– Misuse or abuse
– Unauthorized modifications
– Inadequate maintenance
– Natural disasters
To activate your warranty, please register your crane within 30 days of purchase.
Support:
We offer ongoing support to ensure optimal performance of your motorized gantry crane:
1. Technical Assistance: Our expert technicians are available for troubleshooting and technical support. Contact us via phone, email, or live chat.
2. Maintenance Services: Scheduled maintenance plans are available to prolong the life of your crane. Our certified technicians can perform regular inspections, lubrication, and part replacements.
3. Spare Parts: We maintain a robust inventory of spare parts, ensuring quick replacements to minimize downtime.
4. Training Programs: Comprehensive training for operators and maintenance staff is available to ensure safe and efficient usage of the crane.
5. Online Resources: Access a wealth of resources including user manuals, maintenance guides, and instructional videos on our website.
For immediate support or service appointments, please contact our customer service department, available 24/7. We are committed to ensuring your motorized gantry crane operates safely and efficiently throughout its lifespan.
List “motorized gantry crane” FAQ
Motorized Gantry Crane FAQ
1. What is a motorized gantry crane?
A motorized gantry crane is a type of overhead lifting equipment with a bridge supported on two legs that move along a runway. It is equipped with motorized components for automated lifting and transport of heavy loads.
2. What are the main applications of a motorized gantry crane?
These cranes are commonly used in industries such as manufacturing, warehousing, shipbuilding, and construction for loading, unloading, and moving heavy materials.
3. What are the key benefits of using a motorized gantry crane?
Motorized gantry cranes increase efficiency, reduce manual labor, and provide precise control over heavy load handling. Their versatility and mobility make them ideal for various tasks.
4. How is a motorized gantry crane powered?
Motorized gantry cranes are usually powered by electric motors, though hydraulic and pneumatic options are also available for specific needs.
5. What is the typical lifting capacity of a motorized gantry crane?
Lifting capacities can vary widely, ranging from a few tons to several hundred tons, based on the crane’s design and application requirements.
6. Can a motorized gantry crane be customized?
Yes, motorized gantry cranes can be tailored to specific needs, including varying heights, spans, load capacities, and additional features like remote control or collision avoidance systems.
7. How is safety ensured when operating a motorized gantry crane?
Safety is maintained through operator training, regular inspections, load limit indicators, emergency stop functions, and adherence to regulations and standards.
8. What are the maintenance requirements for a motorized gantry crane?
Routine maintenance includes checking electric motors, inspecting structural components for wear or damage, and ensuring all moving parts are well-lubricated and functioning correctly.
9. How do motorized gantry cranes differ from other overhead cranes?
Unlike fixed overhead cranes, motorized gantry cranes are mobile and can be moved to different locations, offering greater flexibility in operations.
10. Are there specific regulations for operating a motorized gantry crane?
Yes, operators must comply with industry standards and regulations from bodies such as OSHA, ANSI, and ASME for safe operation and maintenance.
In summary, motorized gantry cranes are versatile, efficient lifting tools vital in many industrial sectors, offering significant benefits and requiring proper maintenance and safety adherence.
Top 10 FAQ with answer about motorized gantry crane for Buyer Sourcing from China
1. What is a motorized gantry crane?
A motorized gantry crane is a type of lifting equipment used for transporting loads horizontally and vertically. It operates on a fixed track system and is powered by electric motors for efficient handling of heavy materials.
2. What are the main types of motorized gantry cranes?
The main types include full gantry cranes (with tracks on both sides), semi-gantry cranes (with one leg on a track and one side attached to a building), and portable gantry cranes.
3. What should I consider when choosing a motorized gantry crane?
Consider load capacity, span length, lifting height, operating speed, power supply requirements, and environmental conditions to ensure the crane suits your specific needs.
4. How can I verify the quality of a Chinese-manufactured gantry crane?
Look for certifications such as ISO, CE, and inspections conducted by third-party agencies. User reviews and industry standards compliance also help evaluate quality.
5. What is the typical delivery time for a motorized gantry crane from China?
Delivery time varies based on customization levels. Typically, standard models take 30-60 days, but custom orders may take longer.
6. Are there any after-sales services available?
Most reputable Chinese manufacturers offer comprehensive after-sales services, including installation support, training, maintenance, and spare parts availability.
7. What are the payment terms for sourcing a gantry crane from China?
Common payment terms include a 30% deposit with the balance paid before shipment. Other terms might be negotiated based on the supplier.
8. How do I ensure proper installation and operation?
Manufacturers usually provide detailed manuals, and many offer on-site installation services and training sessions to ensure safe and effective operation.
9. What about warranty and parts replacement?
Warranties generally range from 1 to 2 years, covering manufacturing defects. Spare parts are usually readily available, with some manufacturers offering parts kits.
10. Can motorized gantry cranes be customized?
Yes, customization options include adjustments in load capacity, dimensions, power supply, speed controls, and additional features like remote control and automation.
Thinking through these FAQs will help you source a motorized gantry crane that meets your operational needs effectively.
